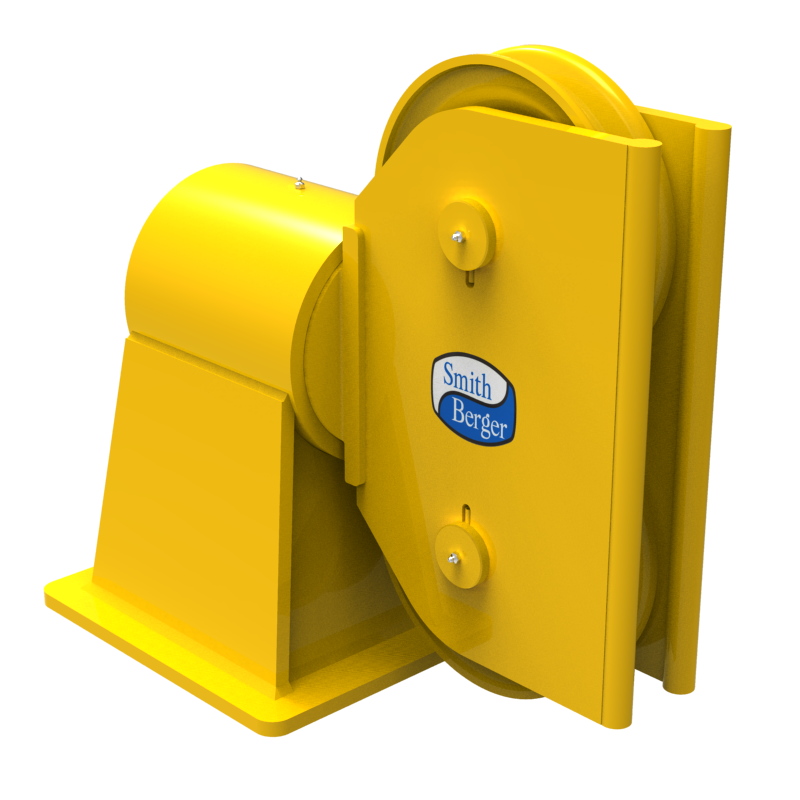

DECK MOUNTED DOUBLE SHEAVE FAIRLEADS

DECK MOUNTED DOUBLE SHEAVE FAIRLEADS

Standard Features

  • Designed for Breaking Strength of Wire Rope with 90° Wrap on a Sheave and ±90° Rotation of Swivelhead
  • Cast Steel Sheaves with Hardened Rope Grooves for Longer Life
  • Sealed Grease Lubricated Tapered Roller Bearings in Sheaves and Swivelhead
  • Weld Down Mounting Base
  • Removable Guide Roller
  • Epoxy Primer Coating

Optional Features

  • Customized Design to Suit Your Application
  • Tail Sheaves / Tail Rollers
  • Stainless Steel or Nylon Sheaves
  • Load Monitoring System
  • Three Coat Marine Paint System
  • Third Party Certification

Download the PDF Brochures:

MD-2610 Max. Wire 3/4" (19mm)

MD-2612 Max. Wire 1" (26mm)

MD-2614 Max. Wire 1 1/4" (32mm)

MD-2618 Max. Wire 1 1/2" (38mm)

MD-2624 Max. Wire 2" (52mm)

MD-2630 Max. Wire 2 1/4" (58mm)

MD-2648 Max. Wire 2 1/2" (64mm)

Click here to request a C.A.D. drawing.

(Please specify which model you need.)
